기술현황
- Experienced Designing Various Size Of TSM
- Mass Production Set Up For Various Structure Of TSM
- Quick Feed Back And Engineering Support
Touch IC Application
※ 출처: www.touchnetix.com
TouchNetix IC Application
About
What aXiom can achieve in UI

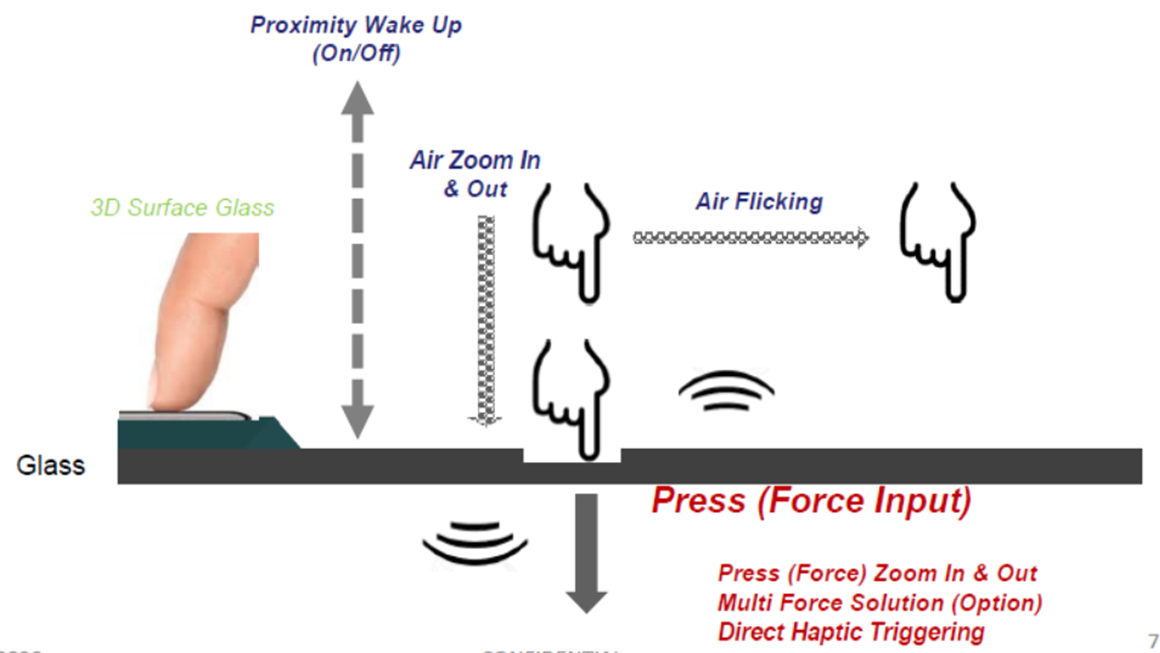

- Complete 3D Sensing: Proximity Wake Up, Hover (Air Gesture) and Press (Force)
- Support on Reliable Button-Free or Button-Less Designs on Cockpit Control
- As for CASE, aXiom should be able to bring Powerful & Reliable User Experience to next Generation of Automotive Human VS Machine Interface in combination with other technology liike Voice Recognition
Solution
80 dB SNR
Proximity
Hover
Force
Haptics
Glove
Water Operation
Dial-on-Display
Any Shape
Smart Surfaces
IC Application
Automotive
Industrial
Medical
Militery & Aerospace

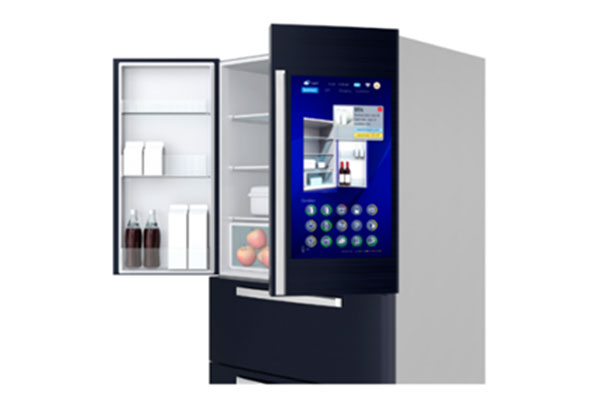

Appliances & Consumer
※ 출처: www.greenchip.co.kr
GreenChip IC Application
About

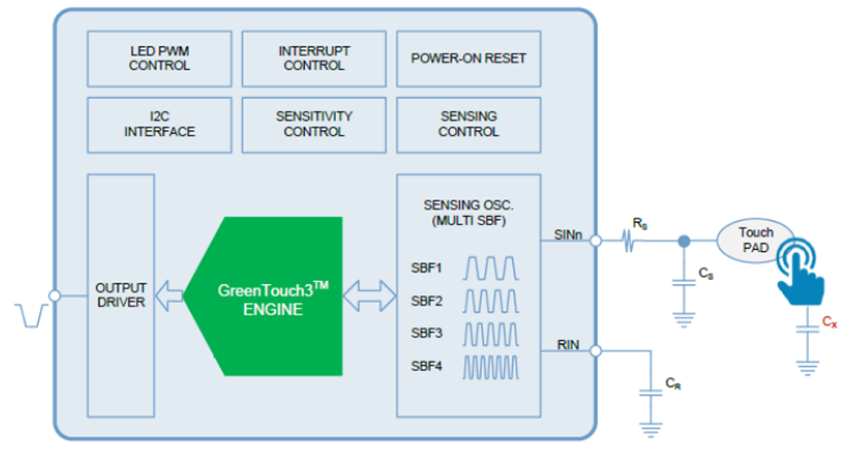

Smart Calibraton Capacitive Touch Sensor Series
GT5 Series
- Ensures to pass CS, RS, EFT, Impulse test and etc.
- Refrigerator, Air cleaner, Air conditioner, Washing machine, Micro wave oven, Induction range, Cooker, Bidet, Water purifier, Humidifier, Monitor, Blue ray player, Home theater system, Wall switch, Set-top box and etc.
| Product | Channel | Op. Voltage | Scan Method | Interface | Package | Remarks |
|---|---|---|---|---|---|---|
| GT501L | 1 | 2.7V ~ 5.5V | Polling | 1:1 Direct | SOT23 |
|
| GT504L | 4 | 2.7V ~ 5.5V | Polling Interrupt |
1:1 Direct I2C |
14SOP |
|
IC Application

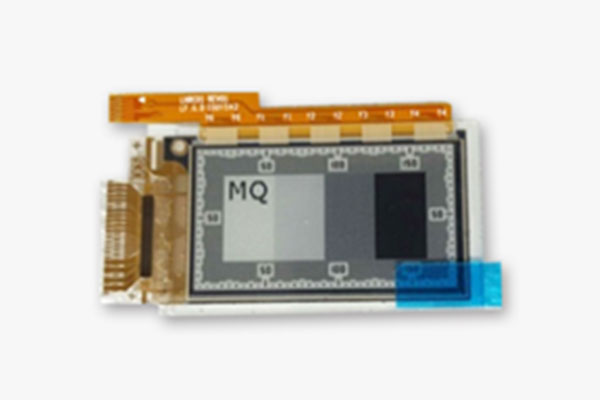

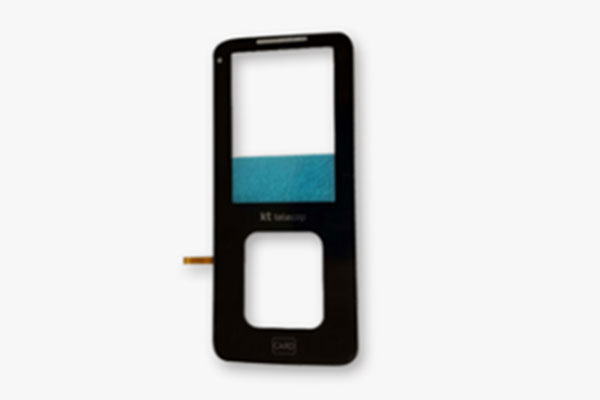

4.2" Security

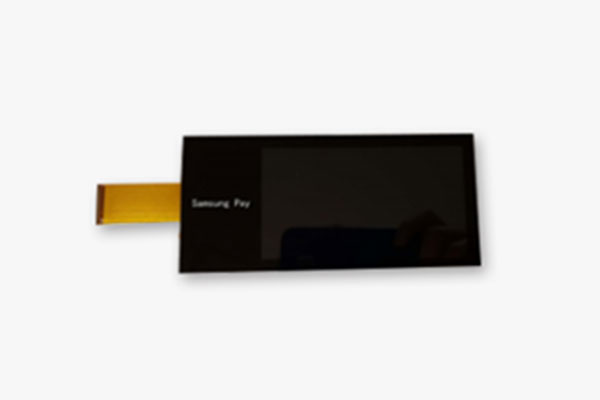

4.5" Sign pad

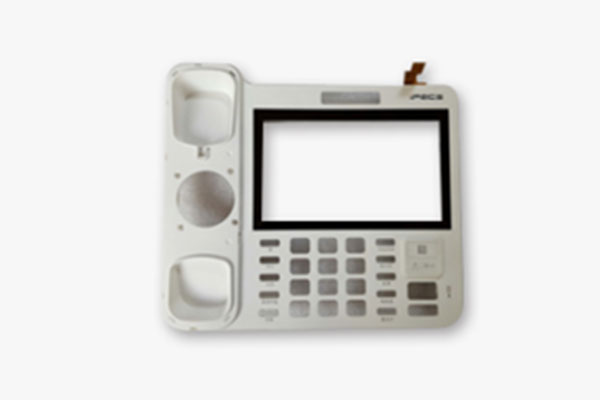

7" IP phone

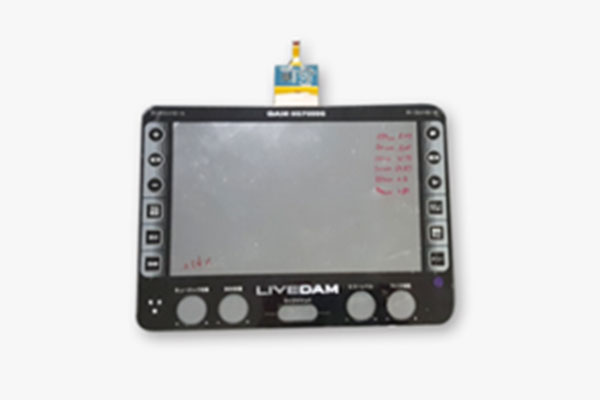

10.1" Karaoke
1.38" Smart card

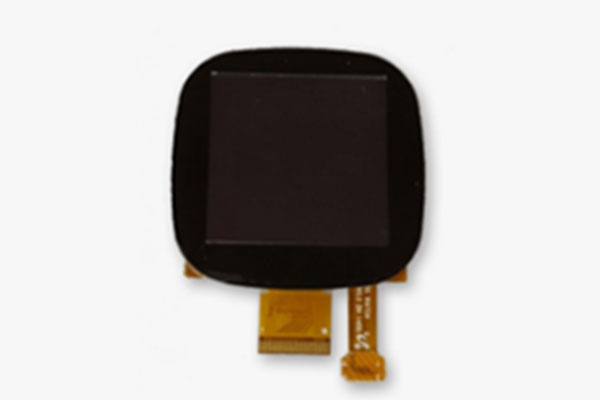

1.36" Kid watch
※ 출처: zinitix.com
Zinitix IC Application
About

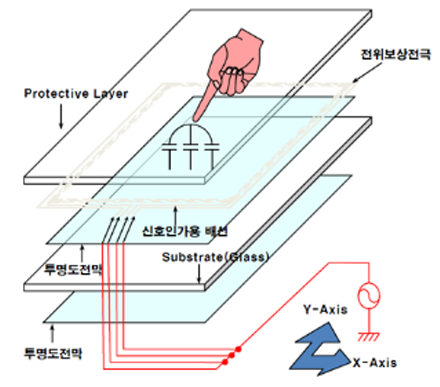

- 정전용량방식
- 지정된 Point로 교류신호를 인가하여, 각각의 단자에 흐르는 전류량을 이용하여 Touch 인식및 좌표검출
정전용량 방식의 Touch Module은 다양한 소재(ITO, Metal mesh, PCB 등)를 활용하여 다양한 구조로 사용자가 화면을 손이나 펜으로 터치하는 것으로 유도되는 전극간 정전용량 변화를 감지하여 해당 위치에 동작을 인식하는 Interface 장치입니다.
IC Application

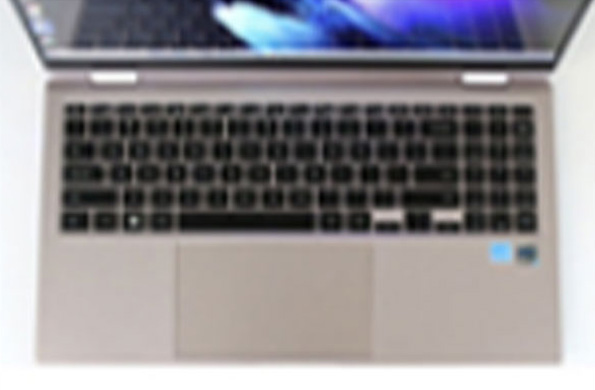

Note PC
Touch switch

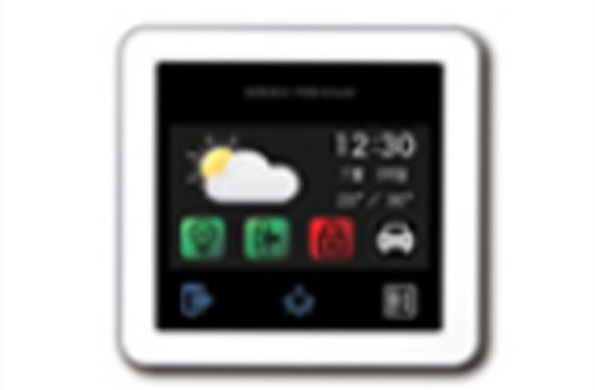

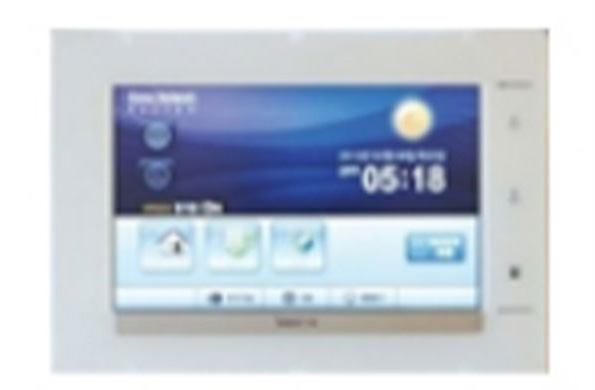

Wall-pad

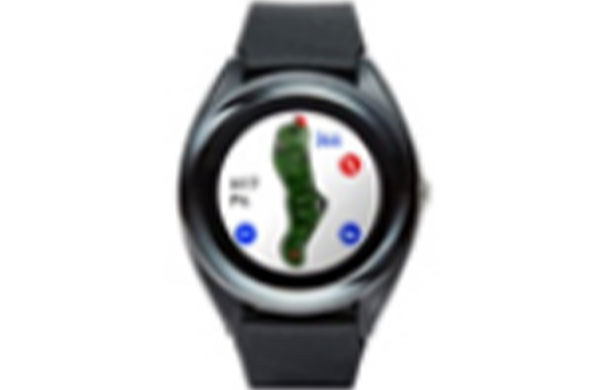

Golf watch

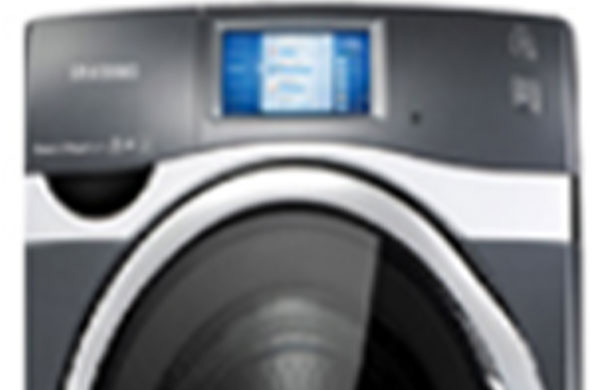

Home appliance
